Neutral Links

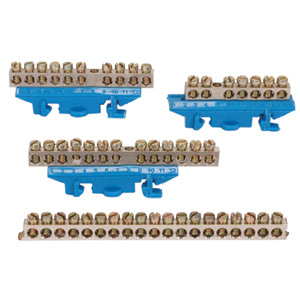

These are made of high electrical grade free cutting brass. They are available in various dimensions and threads as per custom design or requirement. They are also available with electrical grade plastic base for din rail mounting. The available finish is natural, nickel or tin plated.
Categories
-
Bakellite Sheets
ITEM: BAKELLITE SHEETS
LENGTH WIDTH THICK (MTRS.) (MTRS.) (MM) 1.22 1.22 1 TO 40 1.22 1.83 1 TO 40 1.22 2.44 1 TO 40 Material : Paper Based Industrial Laminate
Color : Brown / Brown. Brown / Grey, Grey / Grey
Finish : Matt/ Gloss I Grade : Electrical Pl /P2/P3 -
Bus Bar Heat Shrinkable Sleeves
Part No. Width (mm) Suitable Bus Ba Size HSS17 17 9x3mm, 10x3mm HSS20 20 9x6mm, 10x6mm, 12x3mm HSS25 25 12x6mm, 15x3mm HSS30 30 19x6mm HSS35 35 20x6mm, 25x3mm HSS41 41 25x6mm, 25x10mm, 25x20mm HSS48 48 25x12mm, 30x6mm, 30x10mm HSS55 55 30x12mm, 38x6mm HSS61 61 38x9mm, 38x12mm, 40x6mm, 40x10mm HSS73 73 50x6mm HSS81 81 50x10mm, 50x12mm HSS85 85 60x6mm, 60x10mm HSS93 93 60x12mm, 75x6mm HSS103 103 75x10mm, 75x12mm HSS110 110 90x6mm, 90x12mm HSS128 128 100x6mm, 100x10mm HSS140 140 100x12mm HSS170 170 125x6mm, 125x12mm, 150x6mm HSS190 190 150x6mm, 150x10mm, 150x12mm HSS210 210 175x6mm, 175x10mm, 175x12mm HSS230 230 200x12mm Properties Values Working Tempreture 90°C Dielectric Strength 10 KV/mm Insulation Resistance 20 X 10 10 Ohms at 500V. DC Tensile Strength 400 Kg/cm (min) Ultimate Elongation 100% (min) Chemical Resistance Good Chemical Resistance Good Fire Resistance Self Extinguishing Shrinkable Tempreture 105°C – 110°C for 4-5 mts. Shrinkage 30% – 35% Dimensional Variance +- 1.5mm (for Size 17mm to 61 mm) +- 3.0mm (for size 73mm to 230mm) Color: Red / Yellow / Blue / Black / Green
Length/Roll: 100 Meters / 50 Meters
Wall Thickness : 100 Microns / 180 Microns
Material : PVC
HSS : Heat Shrink SleevesPlease mention Color, Wall Thickness & Length per roll
required beside the product part no. in the purchase order. -
Conical Type Insulator
Dimensions
Height Part No. Insert (M) Rt Rb TL Nominal Voltage H (mm) (mm) (mm) (mm) AC/DC 25 C 625 M6 19 25 7 400/500 30 C 630 M6 25 30 7 600/750 30 C 830 M8 25 30 9 600/750 35 C 635 M6 28 35 7 600/750 35 C 835 M8 28 35 12 600/750 40 C 640 M6 33 40 9 600/750 40 C 840 M8 33 40 12 1000/1200 40 C 1040 M10 33 40 12 1000/1200 45 C 845 M8 33 40 12 1000/1200 45 C 1045 M10 33 40 12 1000/1200 50 C 850 M8 40 50 12 1200/1500 50 C 1050 M10 40 50 15 1200/1500 50 C 1250 M12 40 50 17 1200/1500 60 C 1060 M10 40 50 15 1500/1800 60 C 1260 M12 40 50 17 1500/1800 60 C 1060 M10 40 60 15 1500/1800 60 C 1260 M12 40 60 17 1500/1800 70 C 1070 M10 40 50 15 2000/2400 70 C 1270 M12 40 50 17 2000/2400 75 C 1075 M10 40 50 15 2000/2400 75 C 1275 M12 40 50 17 2000/2400 80 C 1080 M10 40 50 15 2000/2400 80 C 1280 M12 40 50 17 2000/2400 Material : DMC (Dough Molding Compound)
All Dimensions are in MM
TL : Effective Thread Length
Insert : Brass / Steel (Zinc Plated)
Color : Red / Brown / Grey -
Hexagonal Type Insulators
Height Part No. Insert (M) A/F R TL Nominal Voltage H (mm) (mm) (mm) (mm) AC/DC 25 H 625 M6 21 16 7 400/500 25 H 825 M8 21 16 9 400/500 30 H 630 M6 31 25 7 600/750 30 H 830 M8 31 25 9 600/750 35 H 635 M6 32 26 7 600/750 35 H 835 M8 32 26 12 600/750 35 H 1035 M10 32 26 12 600/750 40 H 640 M6 39 31 9 600/750 40 H 840 M8 39 31 12 1000/1200 40 H 1040 M10 39 31 12 1000/1200 45 H 845 M8 41 32 12 1000/1200 45 H 1045 M10 41 32 12 1000/1200 50 H 850 M8 48 36 12 1200/1500 50 H 1050 M10 48 36 15 1200/1500 50 H 1250 M12 48 36 17 1200/1500 60 H 1060 M10 52 38 15 1500/1800 60 H 1260 M12 52 38 17 1500/1800 65 H 1065 M10 55 41 15 1500/1800 65 H 1265 M12 55 41 17 1500/1800 70 H 1070 M10 55 41 15 2000/2400 70 H 1270 M12 55 41 17 2000/2400 75 H 1075 M10 55 41 15 2000/2400 75 H 1275 M12 55 41 17 2000/2400 Material: DMC (Dough Molding Compound)
All Dimensions are in MM
TL: Effective Thread Length
Insert: Brass / Steel (Zinc Plated)
Color: Red -
Cylindrical Type Insulators
Height Part No. Insert (M) R TL Nominal Voltage H (mm) (mm) (mm) AC/DC 25 CY 625 M6 25 7 400/500 30 CY 630 M6 30 9 600/750 30 CY 830 M8 30 9 600/750 40 CY 64030 M6 30 12 1000/1200 40 CY 84030 M8 30 12 1000/1200 40 CY 640 M6 40 12 1000/1200 40 CY 840 M8 40 12 1000/1200 40 CY 1040 M10 40 12 1000/1200 50 CY 85040 M8 40 17 1200/1500 50 CY105040 M10 40 17 1200/1500 50 CY 850 M8 50 17 1200/1500 50 CY 1050 M10 50 17 1200/1500 50 CY 1250 M12 50 17 1200/1500 60 CY 106050 M10 50 17 1500/1800 60 CY 126050 M12 50 17 1500/1800 60 CY 1060 M10 60 17 1500/1800 60 CY 1260 M12 60 17 1500/1800 Material : DMC (Dough Molding Compound)
All Dimensions are in MM
TL : Effective Thread Length
Insert : Brass / Steel (Zinc Plated)
Color : Red / Brown / Grey -
Drum Type Insulators
Height Part No. Insert (M) A/F R TL Nominal Voltage H (mm) (mm) (mm) (mm) AC/DC 25 D 625 M6 21 16 7 400/500 25 D 825 M8 21 16 9 400/500 30 D 630 M6 31 25 7 600/750 30 D 830 M8 31 25 9 600/750 35 D 635 M6 32 26 7 600/750 35 D 835 M8 32 26 12 600/750 35 D 1035 M10 32 26 12 600/750 40 D 640 M6 39 31 9 600/750 40 D 840 M8 39 31 12 1000/1200 40 D 1040 M10 39 31 12 1000/1200 45 D 845 M8 41 32 12 1000/1200 45 D 1045 M10 41 32 12 1000/1200 50 D 850 M8 48 36 12 1200/1500 50 D 1050 M10 48 36 15 1200/1500 50 D 1250 M12 48 36 17 1200/1500 60 D 1060 M10 52 38 15 1500/1800 60 D 1260 M12 52 38 17 1500/1800 65 D 1065 M10 55 41 15 1500/1800 65 D 1265 M12 55 41 17 1500/1800 70 D 1070 M10 55 41 15 2000/2400 70 D 1270 M12 55 41 17 2000/2400 75 D 1075 M10 55 41 15 2000/2400 75 D 1275 M12 55 41 17 2000/2400 Material : DMC (Dough Molding Compound)
All Dimensions are in MM
TL : Effective Thread Length
Insert : Brass / Steel (Zinc Plated)
Color : Red / Brown / Grey -
L Type Support
Part No. Height L 60 60 L 85 85 L 105 105 L 125 125 L 150 150 Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM -
Finger Type Support
Bus Bar Slot Part No. A B C D E F Sd 6mm x 1 106S 7 50 22 14 10 – 15 10mm x 1 110S 11 50 22 14 10 – 15 12mm x 1 112S 14 50 22 14 10 – 15 6mm x 1 106W 7 60 32 14 10 – 15 10mm x 1 110W 11 60 32 14 10 – 15 12mm x 1 112W 14 60 32 14 10 – 15 6mm x 1 106K 7 70 40 20 16 – 15 10mm x 1 110K 11 70 40 20 16 – 15 12mm x 1 112K 14 70 40 20 16 – 15 6mm x 2 206W 7 60 32 14 10 6 15 10mm x 2 210W 11 60 32 14 10 9 15 12mm x 2 212W 14 70 32 14 10 11 15 6mm x 2 206K 7 70 40 20 16 6 15 10mm x 2 210K 11 70 40 20 16 9 15 12mm x 2 212K 14 70 40 20 16 11 15 6mm x 3 306W 7 70 32 14 10 6 15 10mm x 3 310W 11 80 50 14 10 9 15 12mm x 3 312W 14 90 50 15 11 11 15 6mm x 3 306K 7 70 40 20 16 6 15 10mm x 3 310K 11 100 50 20 16 6 15 12mm x 3 312K 14 100 50 20 16 11 15 6mm x 4 406W 7 80 50 14 10 – 15 6mm x 4 406K 7 100 50 20 16 – 15 10mm x 4 410K 11 130 80 20 16 9 15 12mm x 4 412K 14 130 80 20 16 11 15 Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM
Sd: Depth of the Slot
Mounting Hole: ᴓ 8.5mm -
TPN Type Support
Bus Bar Slot Part No. A B C D N Z Y Y1 F Sd 6mm x 1 x TP&N TPN 107/30 7 300 280 50 7 65 52.5 52.5 – 15 10mm x 1 x TP&N TPN 111/30 11 300 280 50 7 65 52.5 52.5 – 15 12MM x 1 x TP&N TPN 114/30 14 300 280 50 7 65 52.5 52.5 – 15 6mm x 1 x TP&N TPN 107/35 7 350 328 50 7 75 62.5 62.5 – 15 10mm x 1 x TP&N TPN 111/35 11 350 328 50 7 75 62.5 62.5 – 15 12MM x 1 x TP&N TPN 114/35 14 350 328 50 7 75 62.5 62.5 – 15 6mm x 1 x TP&N TPN 107/42 7 420 396 60 7 100 52.5 68 – 15 10mm x 1 x TP&N TPN 111/42 11 420 396 60 7 100 52.5 68 – 15 12MM x 1 x TP&N TPN 114/42 14 420 396 60 7 100 52.5 68 – 15 6mm x 2 x TP&N TPN 207/35 7 350 328 50 7 70 78 62.5 6 15 10mm x 2 x TP&N TPN 211/35 11 350 328 50 11 70 78 62.5 9 15 12mm x 2 x TP&N TPN 214/35 14 350 328 50 14 70 78 62.5 11 15 6mm x 2 x TP&N TPN 207/42 7 420 396 60 7 100 52.5 69 6 15 10mm x 2 x TP&N TPN 211/42 11 420 396 60 11 100 52.5 69 9 15 12mm x 2 x TP&N TPN 214/42 14 420 396 60 14 100 52.5 69 11 15 Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM
TPN: Triple Pole & Neutral -
Grip Type Support
Part No. 10 GS 306/211 11 GS 306/411 12 GS 406/311 30 GS 306/211 31 GS 306/211 31 GS 211/214 30 GSL 207/211 30 GSL 306/211 42 GSL 307/211 43 GS 307/211 44 GS 207/211 Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM
Mounting Hole Suitable for M8 Stud
C-C (ph): Centre to Centre Between Phases
GS: Grip Support -
CT3010
Primary Current Accuracy Class 1 VA 2.5 VA 5 VA 75 3 80 3 100 1 125 1 150 1 3 200 1 250 1 300 1 400 1 -
CT4010
Primary Current Accuracy Class 2.5 VA 5 VA 150 1 200 1 250 1 300 1 400 1 500 1 600 1 -
CT6010
Primary Current Accuracy Class 10 VA 15 VA 400 1 500 1 600 0.5 1 800 0.5 1 1000 0.5 1 1200 1 1500 1 1600 1 -
CT8010
Primary Current Accuracy Class 5 VA 10 VA 15 VA 400 1 500 1 600 1 800 0.5 1 1000 0.5 1 1200 0.5 1 1500 0.5 1 1600 0.5 1 2000 0.5 1 -
CT10010
Primary Current Accuracy Class 10 VA 15 VA 30 VA 800 0.5 1 1000 0.5 1200 0.5 1500 0.5 1600 0.5 2000 0.5 1 2500 0.5 1 3000 0.5 4000 0.5 -
FRP L Angle Profile
Part No. Height (mm) Width (mm) Thickness
(mm)FRLA353505 35 35 5 FRLA505006 50 50 6 Color : White
Length: 2 Meters -
FRP Flat Profile
Part No. Width (mm) Thickness
(mm)FRFP2510 25 10 FRFP3010 30 10 FRFP4010 40 10 FRFP5010 50 10 FRFP6010 60 10 FRFP7010 70 10 FRFP2520 25 20 FRFP3020 30 20 FRFP4020 40 20 FRFP5020 50 20 FRFP6020 60 20 FRFP7020 70 20 Color : White
Length: 1 Meter -
TC – 72
Technical Specifications
Properties Values Description Moving Iron Meter of 90° deflection
with Interchangable Scale facilityMovement Type Moving Iron Spring Mounted
Jewel bearing SuspensionAccuracy ± 1.5% of Full Scale As Per IS 1248 Range Current (A.): 0-1A. To 1-100A. (Direct)
Through CT /1A. Or /5A. For Higher Currents.Range Voltage (V.): 0-50V. To 0-600V. (Direct)
Through PT for Higher Voltages.Self Consumption Ammeter (upto 5A. AC) – < 0.6VA
Voltmeter (upto 500V. AC) – < 5VAOperating Voltage 600V. RMS Max. Test Voltage 2.5 time for 1 min. at 50 Hz Construction and Design As per IS 1248 Scale According to DIN 43802 Case / Housing Material Black Nylon, Dimensions as per DIN 43700 Bezel Black Poly Carbonate and Nylon glass filled
Dimensions as per DIN 43718Glass Face Plate Poly Carbonate (Shatter Proof) Tempreture Conditions 10°C to 55°C, RH < 90% Front Protection IP52 Protection as Per IS2147 Terminal Protection IP20 Terminal Protection -
TC – 96
Technical Specifications
Properties Values Description Moving Iron Meter of 90° deflection
with Interchangable Scale facilityMovement Type Moving Iron Spring Mounted
Jewel bearing SuspensionAccuracy ± 1.5% of Full Scale As Per IS 1248 Range Current (A.): 0-1A. To 1-100A. (Direct)
Through CT /1A. Or /5A. For Higher Currents.Range Voltage (V.): 0-50V. To 0-600V. (Direct)
Through PT for Higher Voltages.Self Consumption Ammeter (upto 5A. AC) – < 0.6VA
Voltmeter (upto 500V. AC) – < 5VAOperating Voltage 600V. RMS Max. Test Voltage 2.5 time for 1 min. at 50 Hz Construction and Design As per IS 1248 Scale According to DIN 43802 Case / Housing Material Black Nylon, Dimensions as per DIN 43700 Bezel Black Poly Carbonate and Nylon glass filled
Dimensions as per DIN 43718Glass Face Plate Poly Carbonate (Shatter Proof) Tempreture Conditions 10°C to 55°C, RH < 90% Front Protection IP52 Protection as Per IS2147 Terminal Protection IP20 Terminal Protection -
Panel Lock & Key
Part No. H L PL12535 25 35 Part No. H L PL22535 25 35
Part No. H L PL32535 25 35 Part No. H L PL42535 25 35
Body Material : Zinc Alloy
Lever Material : Mild Steel
All Dimensions are in MM
Plating : Chrome -
Din Rail Channels
ITEM: DIN RAIL CHANNEL
Part N0. A B Thickness DRC0108 35 7.5 0.8 DRC0109 35 7.5 0.9 DRC0110 35 7.5 1.0 DRC0215 35 15 1.5 Material : CR Sheet Metal
Finish : Zinc Passivated
Type : Slotted / Unslotted
DRC : Din Rail Channel
Length : 1 Mtr. / 2 Mtrs.
All dimensions are in MM
Please mention Type & Length required besides
the product part no. in the purchase order. -
‘C’ Type Door Handle
Item: ‘ C’ Handle with Screws
Part No. A B CC CH130BK 100 30 90 CH14040BK 140 40 120 Material : Engineering Plastic
All Dimensions are in MM
Color: Black -
Comb Bus Bar End Caps
ITEM: COMB BUS BAR END CAPS
PART NO SIZE EC3PP 3 POLE EC4PP 4 POLE Material: Engineering Plastic
Color: White -
DB Blanking Plate
ITEM: DB BLANKING PLATE
PART NO. SIZE DBBP12M 12 MOD DBBP1MT 1 MTR Material: Engineering Plastic
Color: RAL 7032, RAL 7035 -
Document Holders
ITEM: DOCUMENT HOLDERS
PART NO. SIZE Depth DHA4H A4 40 DHA4S A4 19 DHA5H A5 20 Material: Engineering Plastic
Color: RAL 7032 / RAL 7035
All Dimensions are in MM -
Four Pole ELCB Box
ITEM: ELCB BOX
PART NO. SIZE FB4P 4 POLE Material: Engineering Plastic
Color: Opel White -
Metal Louver
ITEM: Metal Louvre
PART NO. A B ML2 90 210 ML3 90 245 Material: Mild Steel
Finish: Powder Coated
Color: RAL 7032 / RAL 7035
All dimensions are in mm -
Meter Window Glass
ITEM: METER WINDOW GLASS
PART NO. TYPE WGV12 PUSH WGNL11 CLIP Material: UV Grade Engineering Plastic
Color: Transparent -
Self Adhesive Foam Type Panel Gasket
Part No. Width W Thickness T FTG123 12 3 FTG153 15 3 FTG203 20 3 FTG253 25 3 FTG403 40 3 FTG205 20 5 FTG255 25 5 FTG405 40 5 FTG505 50 5 -
Mild Steel Standoff Pillar
Part No. A1 A2 THREAD HEX PROFILE(B) MSPMF106 10 8 M6 10 MSPMF156 15 8 M6 10 MSPMF206 20 8 M6 10 MSPMF256 25 8 M6 10 MSPMF306 30 8 M6 10 MSPMF406 40 10 M6 10 MSPMF506 50 10 M6 10 MSPMF606 60 10 M6 10 MSPMF706 70 10 M6 10 MSPMF806 80 10 M6 10 MSPMF906 90 10 M6 10 MSPMF1006 100 10 M6 10 MSPMF108 10 8 M8 11 MSPMF158 15 8 M8 11 MSPMF208 20 8 M8 11 MSPMF258 25 8 M8 11 MSPMF308 30 8 M8 11 MSPMF408 40 8 M8 11 MSPMF508 50 8 M8 11 MSPMF608 60 8 M8 11 MSPMF708 70 8 M8 11 MSPMF808 80 8 M8 11 MSPMF908 90 8 M8 11 MSPMF1008 100 8 M8 11 Material: Mild Steel
Plating: Zinc Passivated
All Dimensions are in mm
MSPMF: Mild Steel Pillar Male/Female -
Copper Spacers
Part No. OD ID Height(H) CUS1215A 12 6.5 15 CUS1220A 12 6.5 20 CUS1315A 13 6.5 15 CUS1320A 13 6.5 20 Material: Electrolytic Grade Copper
Plating: Tin
CUS: Copper Spacer
All dimesions are in mm
